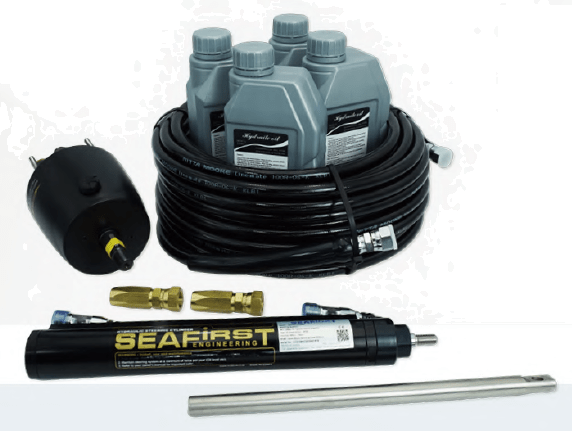

船外機
手泵
不銹鋼 304 軸
內置逆止閥
雙站用連接頭


油壓缸
不銹鋼鍍鉻軸
鋁陽極處理
緊湊型設計,安裝空間更小
安裝單引擎和多引擎
平衡缸


型號 | 20HP | 60 | 75 | 90 | 115 | 150 | 200 | 250 | 300 | 350 |
---|---|---|---|---|---|---|---|---|---|---|
MO100H | V | V | V | V | ||||||
MO150H | V | V | V | V | ||||||
MO350H | V | V | V | V | V | V | V | V | ||
MO700H | V | V | V | V |

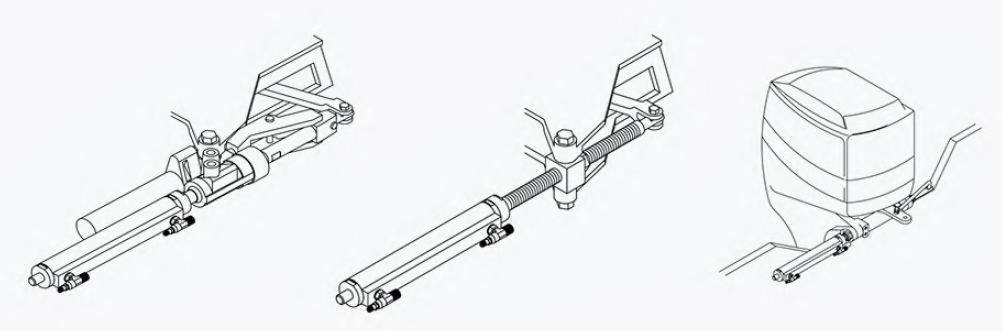

連桿
適用各種連接方式
800S

800T

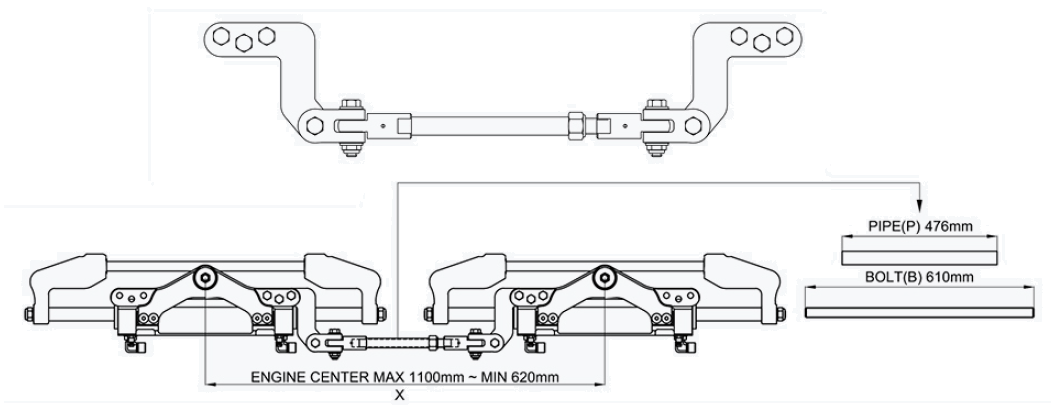

TBK-2-2

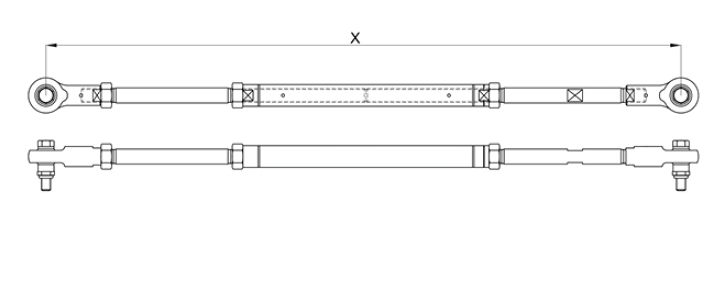

TBE

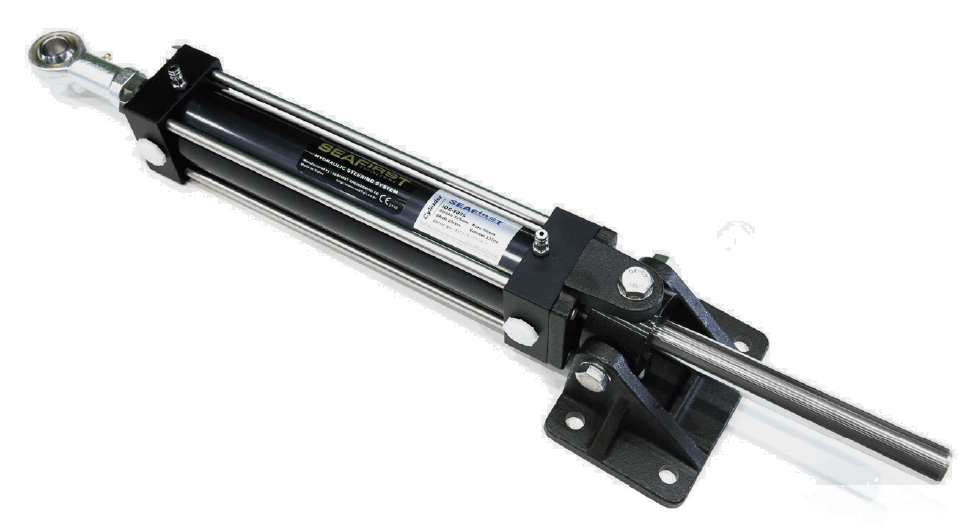

船內外機
油壓缸
可調白鐵接頭
易於安裝
可選不平衡型/平衡型缸
船內機
船內機
IOC單油壓缸
油壓缸 |
手幫浦 |
圈數 |
扭力kgf.m |
引擎hp |
IOC-4020 |
NSH022 |
5.5 |
34 |
75 |
IOC-4021 |
NSH025 |
6.7 |
48 |
75 |
IOC-4022 |
NSH030 |
7.1 |
61 |
110 |
IOC-5024 |
NSH037 |
7.1 |
75 |
110 |
IOC-5025 |
NSH044 |
7.7 |
96 |
140 |
IOC5026 |
NSH044 |
9.3 |
117 |
180 |

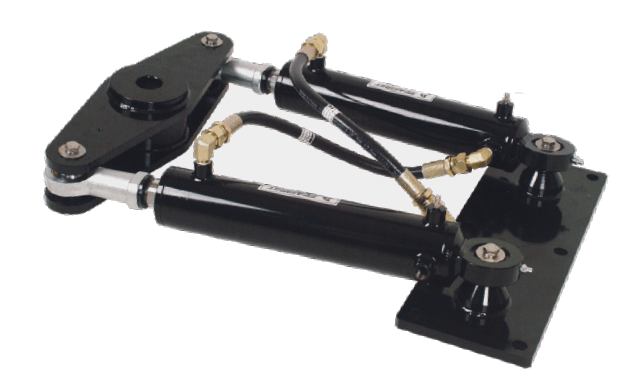

UDC 雙油壓缸組
油壓缸 |
手幫浦 |
圈數 |
扭力kgf.m |
引擎hp |
UDC5030S |
NHP90S |
7.2 |
261 |
250 |
UDC6335S |
NHP120S |
10.1 |
484 |
400 |
UDC7040S |
NHP120S |
13.6 |
655 |
500 |
